M-Series — customized solutions for demanding applications. M-Series circular saws represent fully
customized technological solutions designed according to specific production requirements. Thanks to the
individual design of both machines and peripheral equipment, they enable optimization of productivity,
precision, and material flow across the entire production line.
Key Advantages of the M-Series
Fully Customized Solutions
Each machine is designed based on the specific application, material type, and required productivity.
Wide Range of Peripheral Equipment

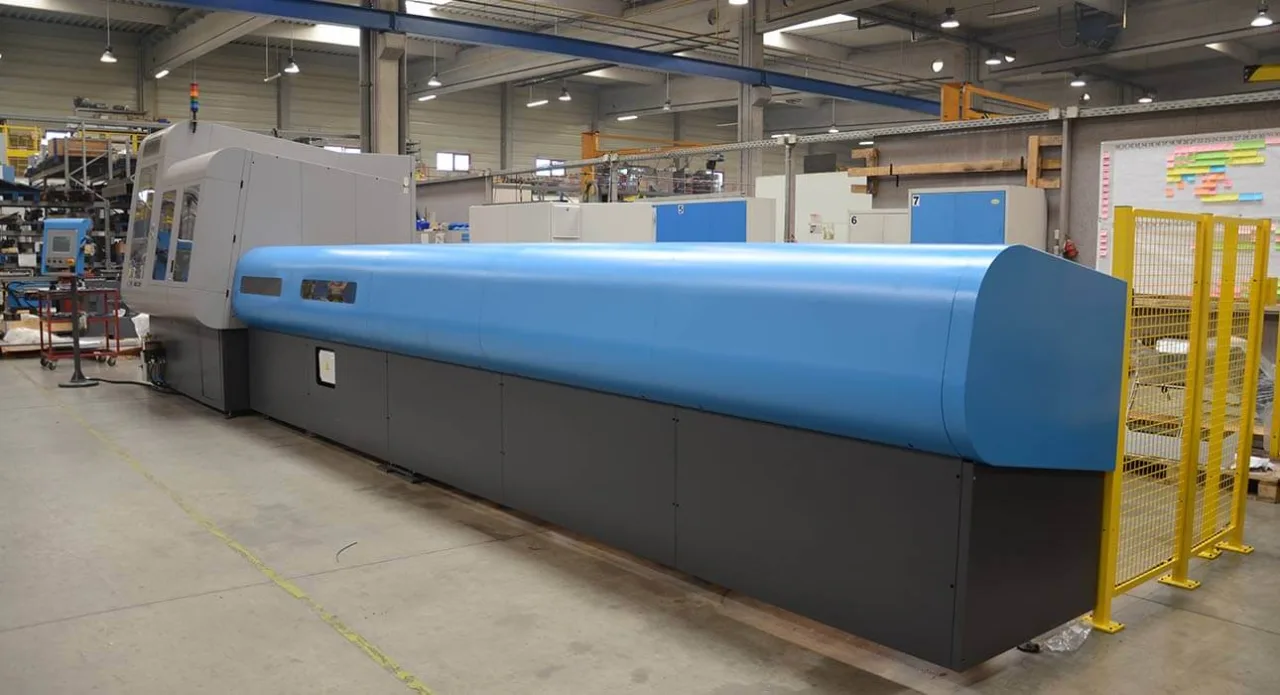

The line can be equipped with material loaders, handling systems, conveyors, and other specialized equipment.
Processing of Various Material Types
Machines are adapted for cutting round and square bars, complex profiles, and special materials such as threaded rods.
Production Process Optimization
The line design ensures smooth material flow and maximum production efficiency.
Integration into Automated Lines
Solutions can be easily integrated into complex automated production systems.
Typical Applications
M-Series circular saws are mainly used in operations requiring high productivity and customized configurations, for example:
cutting of bar materials for high-volume production
processing of complex profiles
cutting of threaded rods
preparation of semi-finished parts for pressing or forming
automated production lines
Designs for Steel and Non-Ferrous Metals
The M-Series is available in two designs that share the same modular concept: MAC for cutting steel, and MAM for non-ferrous metals. The right design is selected according to your material and production requirements.
Technical Description

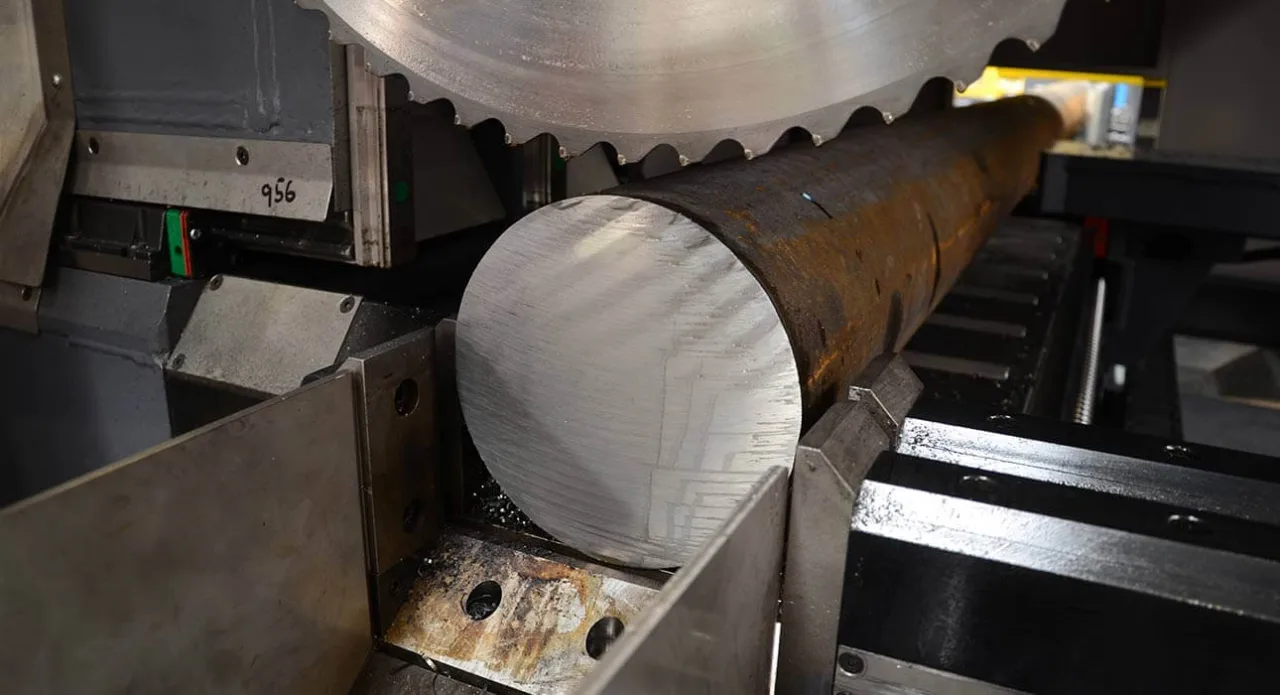

The core of each cutting line is a circular saw designed according to the processed material type. Machines can be optimized for cutting standard round and square bars as well as more complex profiles or special materials.

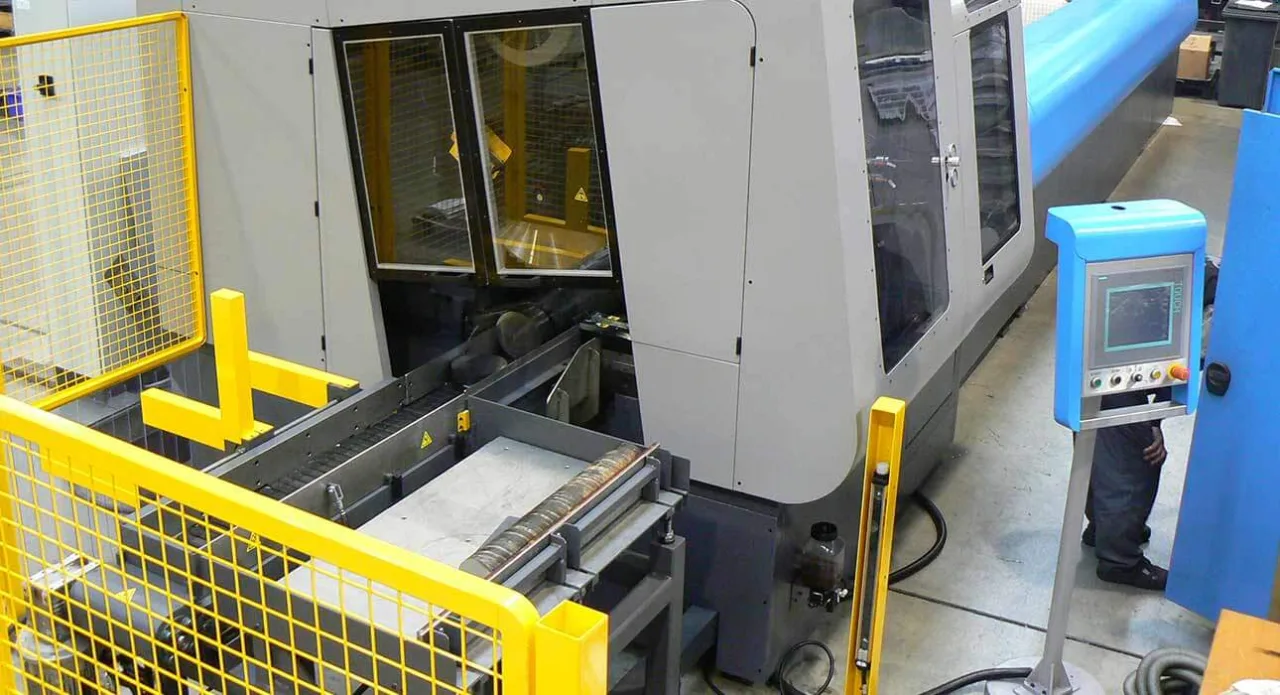

A key part of the solution is the peripheral equipment, which is always designed individually based on customer requirements. The line may include, for example:
infeed material loaders
gravity or controlled magazines
handling systems
output conveyors
specialized equipment for further processing
Thanks to this customized approach, it is possible to create a production line that fully respects the specific requirements of the manufacturing process while ensuring maximum efficiency.
ExactCut circular saws are primarily designed for high-volume cutting of a wide range of steels and light metals. Both machine design and saw blades are optimized for a stable cutting process, high productivity, and minimal downtime between operations.
Technical data

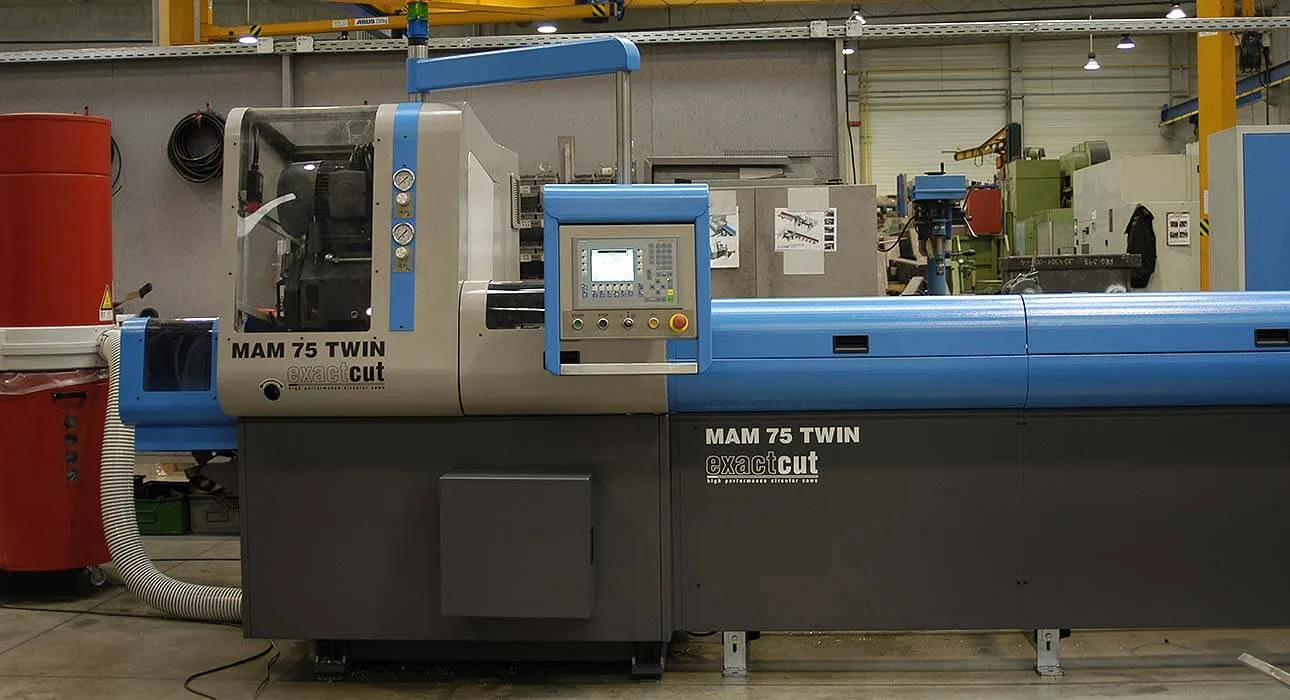

MAC 75 / MAM 75
MAC 105 / MAM 105

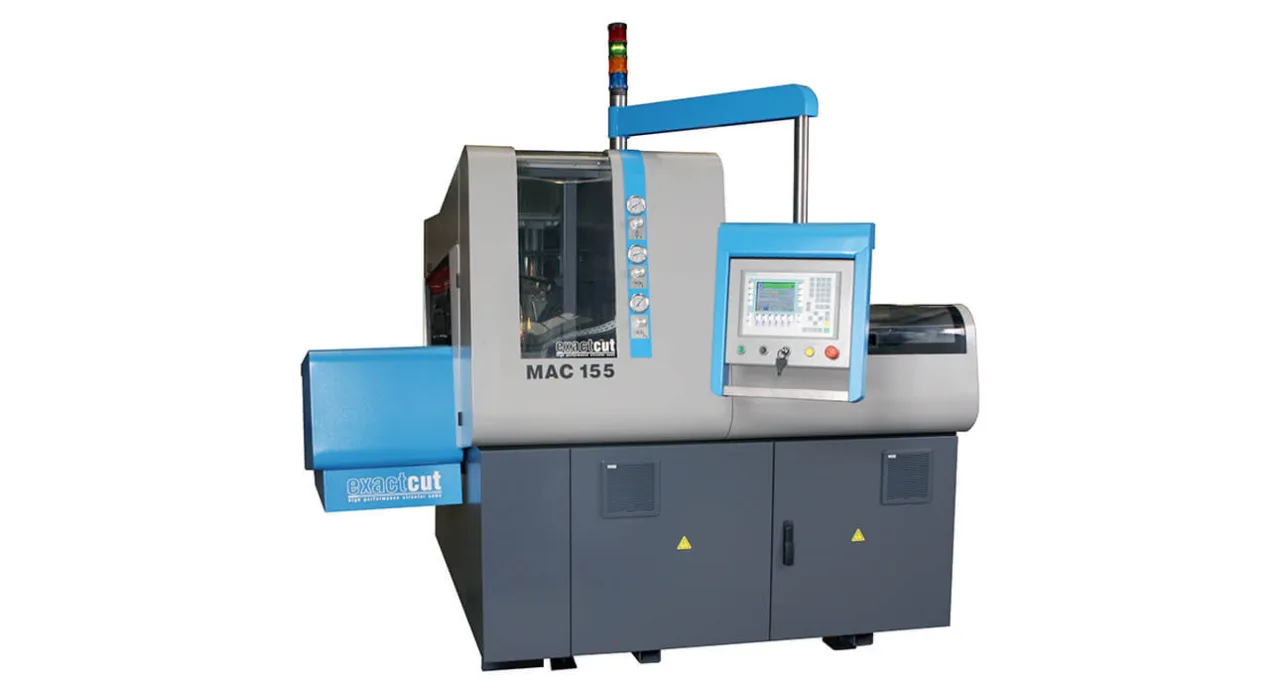

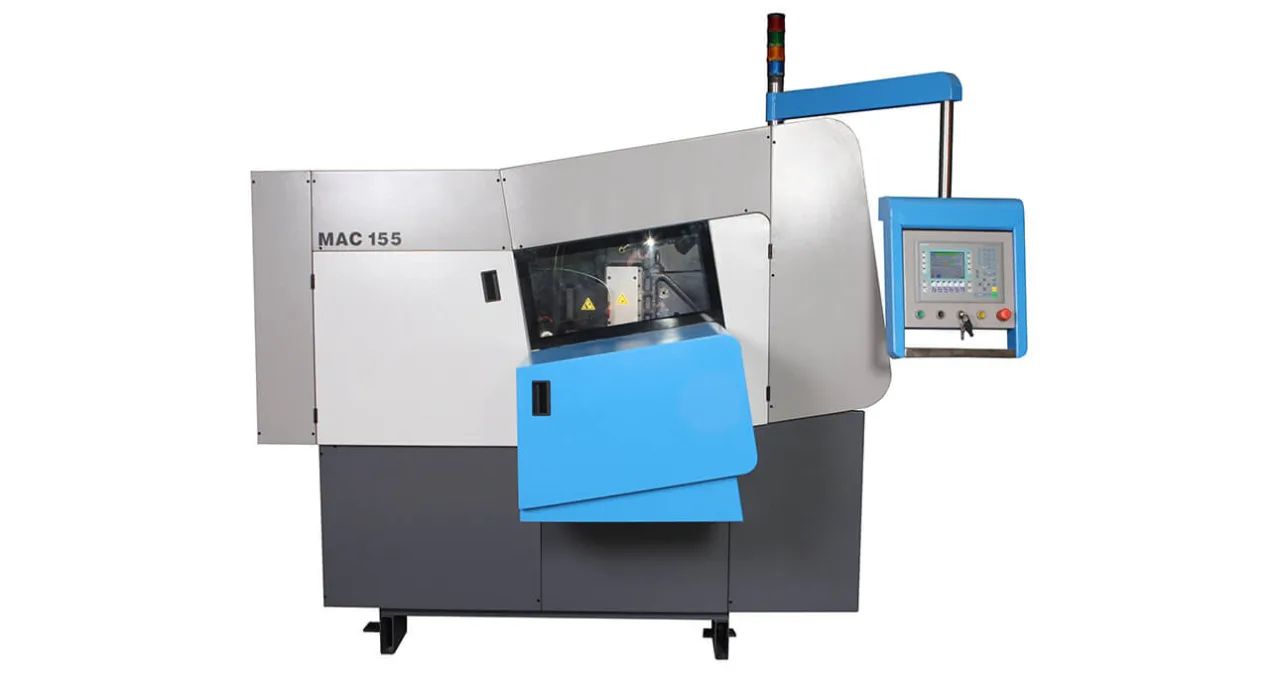

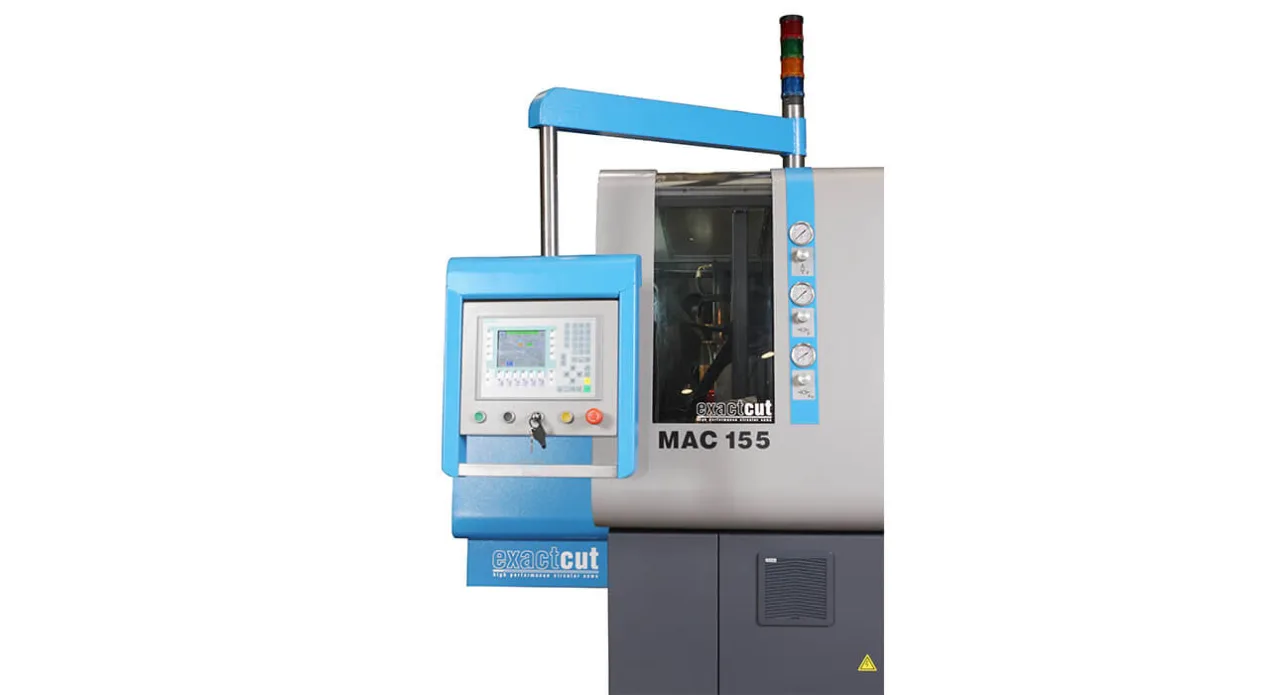

MAC 155 / MAM 155

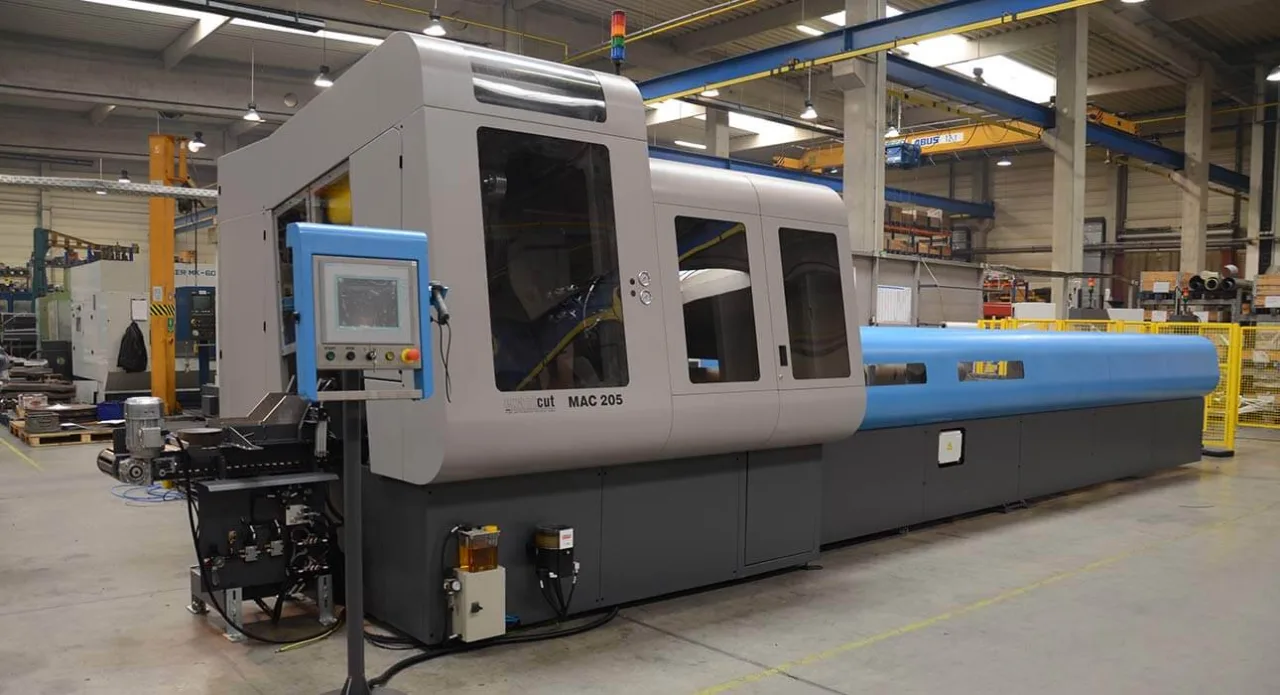

MAC 205 / MAM 205
Application
Steel / non-ferrous metals
Steel / non-ferrous metals
Steel / non-ferrous metals
Steel / non-ferrous metals
Mitre cut
90°
90°
90°
90°
Round stock
Ø 15–75 mm
Ø 20–105 mm
Ø 30–155 mm
Ø 50–205 mm
Square stock
15×15 – 60×60 mm
20×20 – 90×90 mm
30×30 – 115×115 mm
50×50 – 180×180 mm
Rectangular stock
15×15 – 90×60 mm
20×20 – 105×80 mm
30×30 – 155×115 mm
50×50 – 180×205 mm
Remnant length*
90 mm
60 mm
60 mm
110 mm
Accuracy**
on request
on request
on request
on request
Cutting speed
60–220 / 600–2200 m/min
60–220 / 600–2200 m/min
60–220 / 600–2200 m/min
60–220 / 600–2200 m/min
Usable saw blades
Carbide (HM) / HSS
Carbide (HM) / HSS
Carbide (HM) / HSS
Carbide (HM) / HSS
Blade bore
Ø 32 mm
Ø 40/50 mm
Ø 40/50 mm
Ø 50 mm
Saw blade diameter
Ø 250/275 mm
Ø 300/360 mm
Ø 425/460 mm
Ø 460/560/620 mm
Blade thickness
on request
on request
on request
on request
Driver pin dimension
4×9×50
4×16×80 / 4×21×90
4×16×80 / 4×21×90
4×16×80 / 4×21×90
*for a minimum gripping length of 10 mm **for the feeder stroke · Values marked “on request” are not in the data sheet and will be supplied by ExactCut.
