Key advantages
- One saw, double power
- High-output automatic machine
- Simultaneous cutting of two bars
- Precise lengths
- Storage of up to 100 cutting programs to match your orders
- Online remote management for fast service
Circular saws

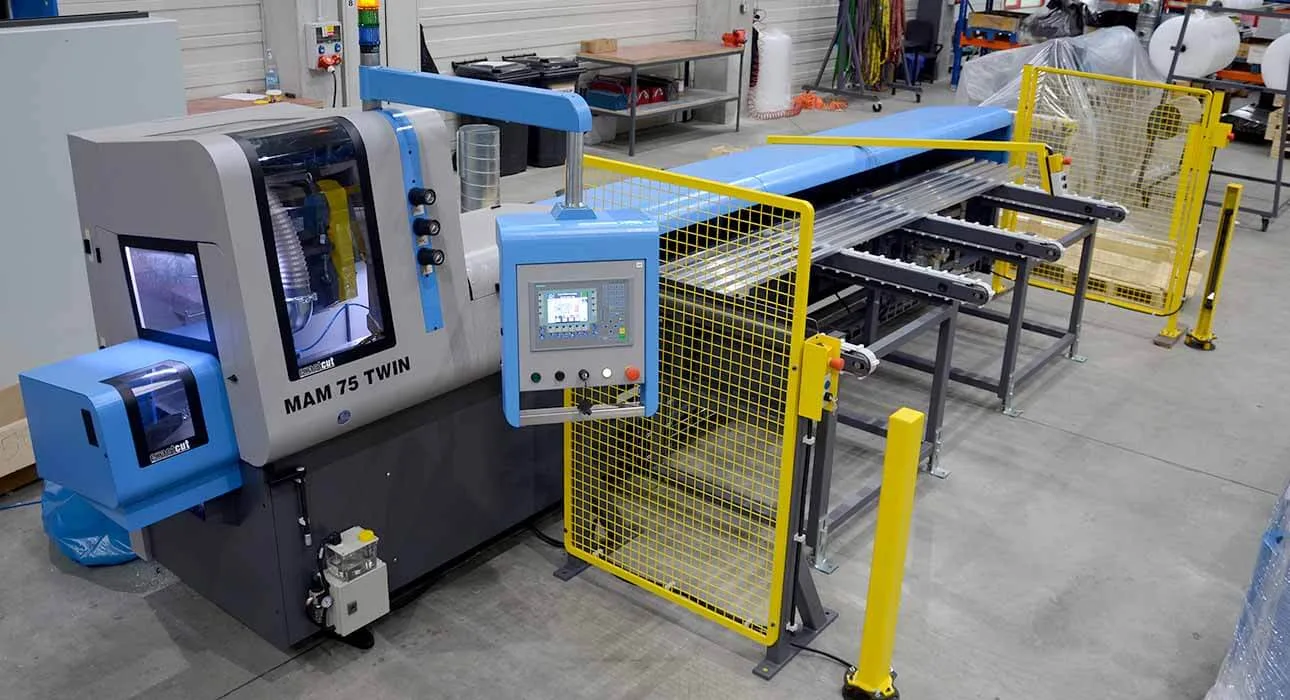

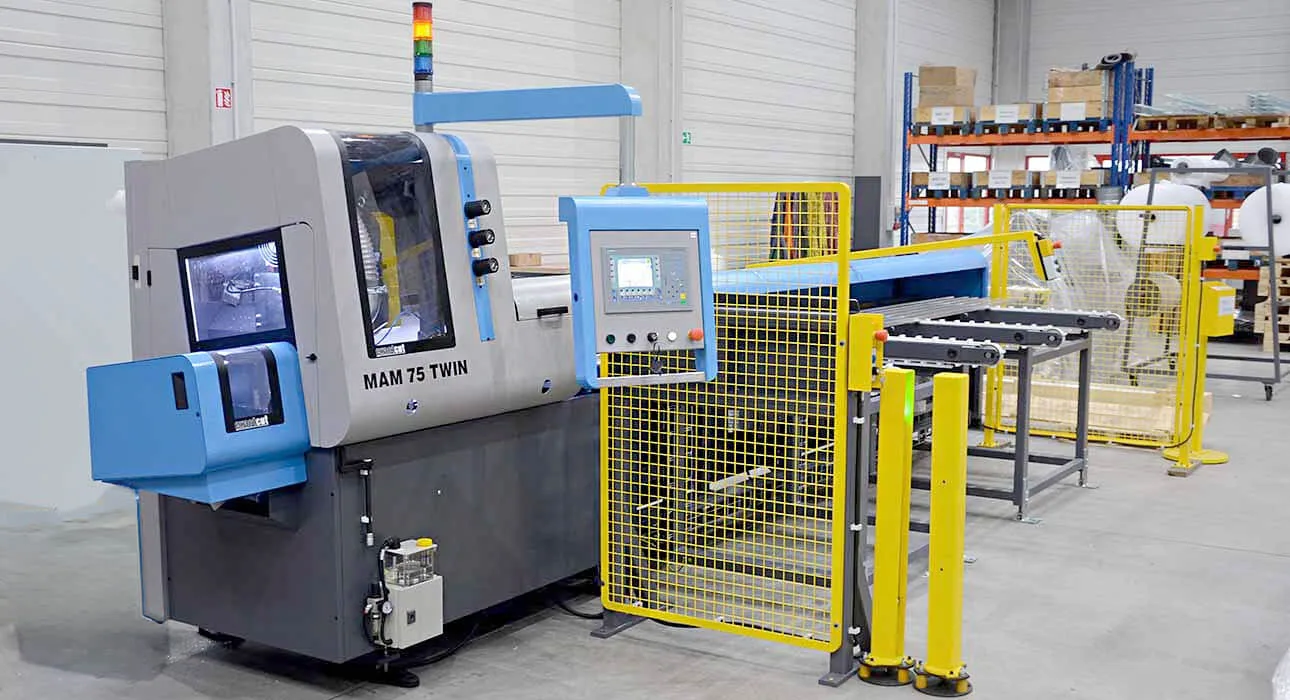

ExactCut 75 TWIN Circular Saw
One saw, double power: a high-output automatic machine that cuts two bars simultaneously to precise lengths – or a single bar up to 70 mm in diameter.
Technical description

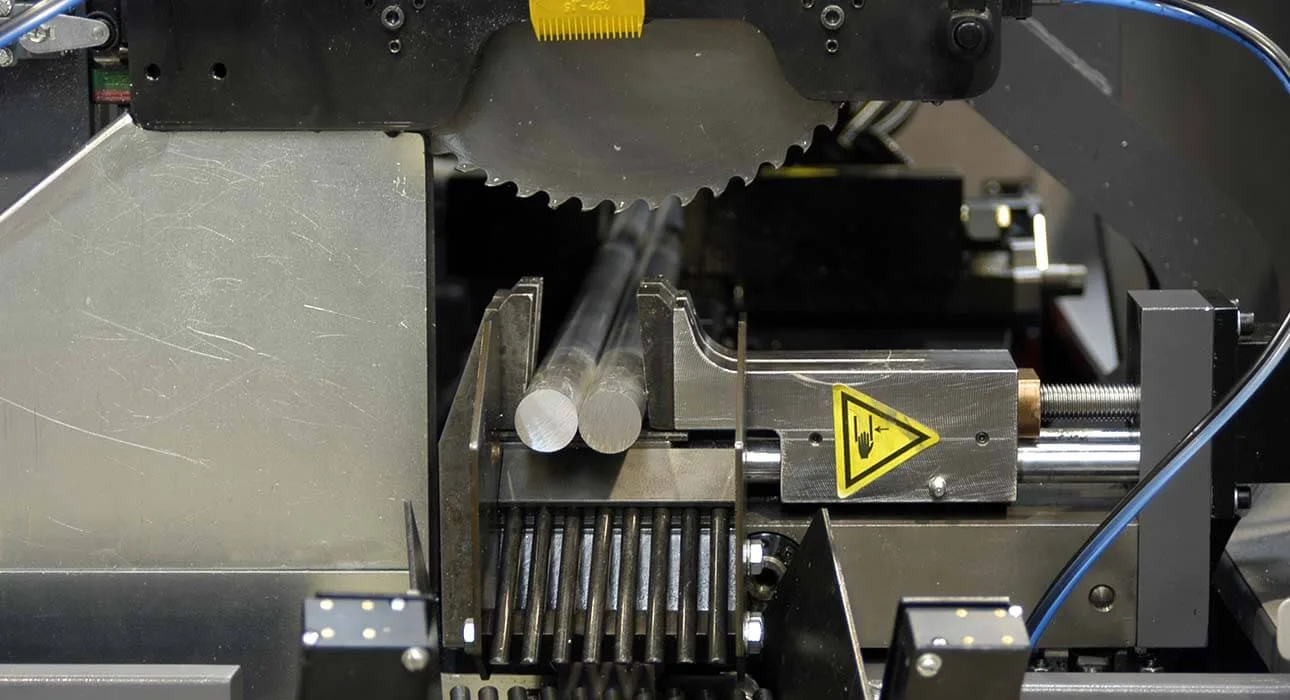

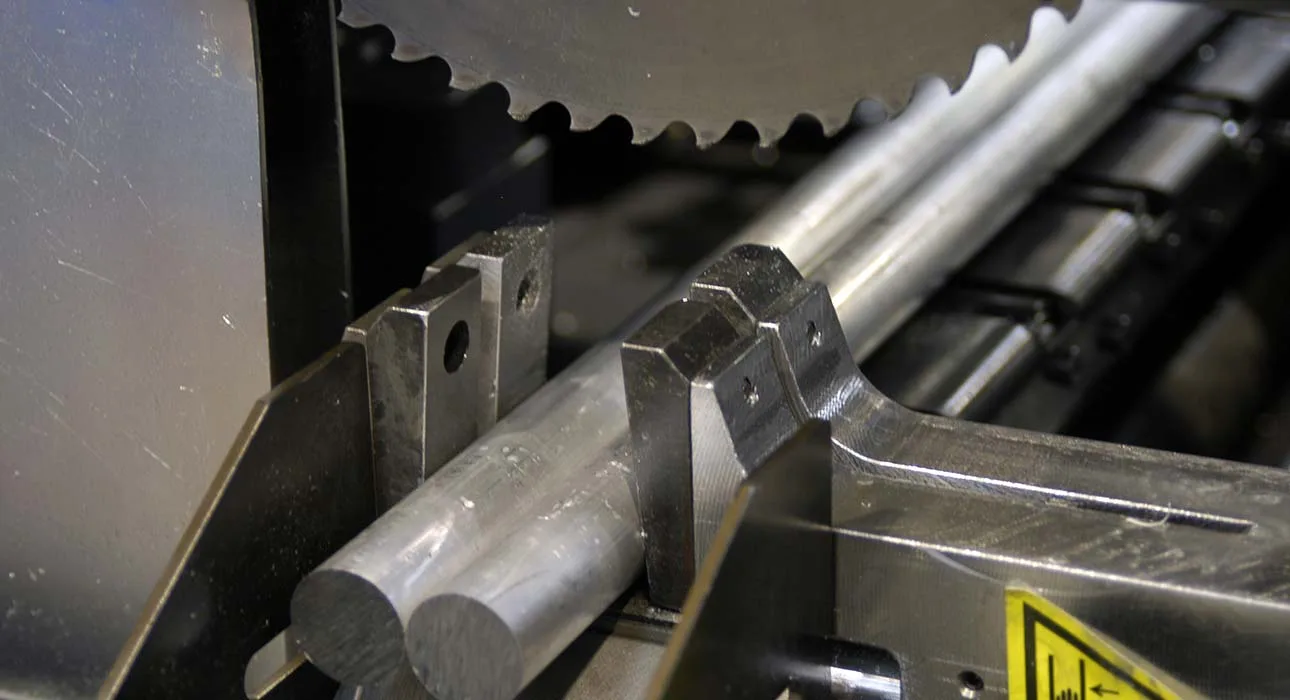

The ExactCut 75 TWIN is the high-productivity addition to our line of circular cutting machines. It cuts two bars with diameters of up to 35 mm at the same time, or a single bar with a maximum diameter of 70 mm. The machine is based on the cutting module of the ExactCut 75.
Technical data – ExactCut 75 TWIN
| MAC 75 / MAM 75 | |
|---|---|
| Application | Steel / non-ferrous metals |
| Mitre cut | 90° |
| Round stock | Ø 15–75 mm |
| Square stock | 15×15 – 60×60 mm |
| Rectangular stock | 15×15 – 90×60 mm |
| Remnant length* | 90 mm |
| Accuracy** | on request |
| Cutting speed | 60–220 / 600–2200 m/min |
| Usable saw blades | Carbide (HM) / HSS |
| Blade bore | Ø 32 mm |
| Saw blade diameter | Ø 250/275 mm |
| Blade thickness | on request |
| Driver pin dimension | 4×9×50 |
*for a minimum gripping length of 10 mm **for the feeder stroke · Values marked “on request” are not in the data sheet and will be supplied by ExactCut.
